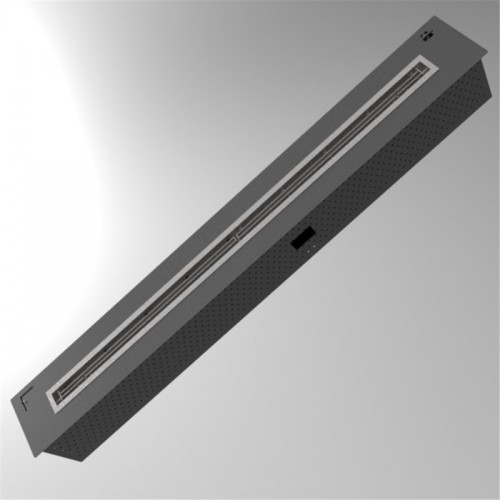

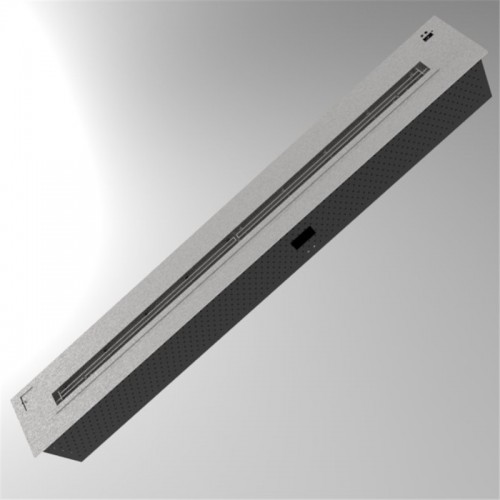

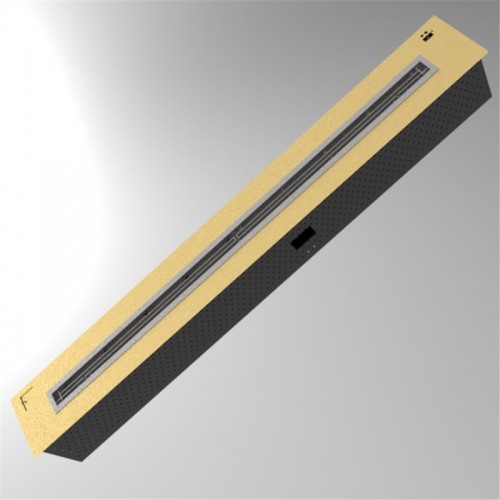

Ribbon Ethanol Burner AF180
Download as PDF
Among the best Art Fireplace Designs, The Ventless Ribbon Ethanol Burner AF180 inserts allows the flames to develop freely and in a very natural way. The intermediate solution for a dynamic fire which remains compatible with the medium-sized rooms.

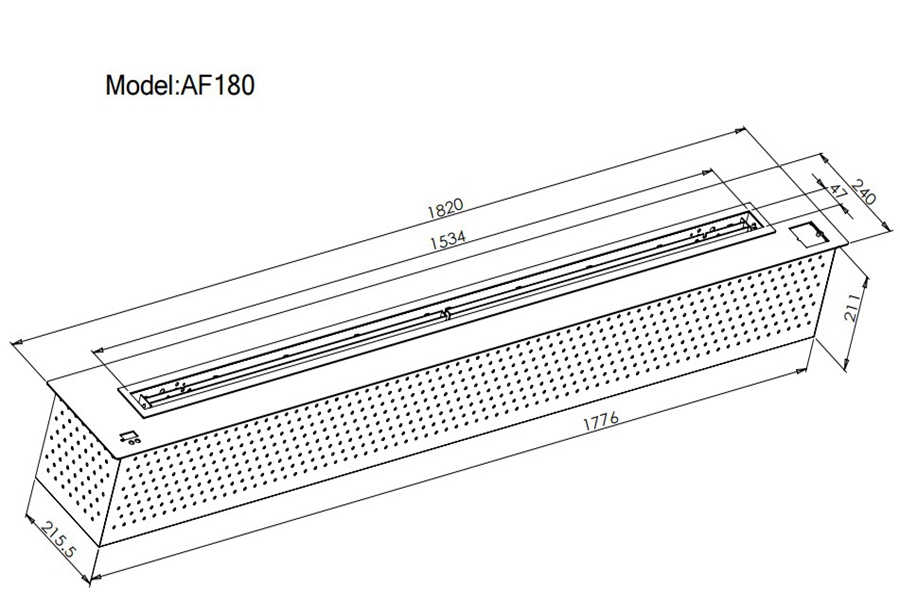

|Usage||In rooms of minimum 25 m2|
|Flame Length||474mm / 18.66inch|
|Flame Height||180mm / 7.08inch|
|Cutout Dimension||1780mm Length / 70.07nch|
|Cutout Dimension||220mm Width / 8.66inch|
|Cutout Dimension||250mm Deep / 9.85inch|
|Advantage||Auto-Ignition/extinguisher, Over heat protection, Shake-off protection,C02 sensor, Over flow protection, Child-lock|
|Usage||Bedroom, Apartment , Bar, Office…|
AF180 Model Featured Functions:
1.Intelligent ethanol burner extinction or ignition ordered by electric board and a Button ON/OFF and remote controller.
2.Automatic filling injection and manual filling injection function for the burner.
3. Material in stainless and MDF.
4. Separately bio-ethanol tank and burning hearth.
5. Co2 Safety infrared detector which stops the fire in the event of reaching un-authorized levels.
6.Sake off function if the burner is moved by external force.
7. Automatic electric pump to fill the combustiontray of the burner.
8. With electronic heat detectors, it will automatic extinction when the temperature reaching the un-authorized levels.
9. AC charger or battery charger with battery loader.
10. With audio effect.
11. Child Lock Function.
1. Automatic bio fireplace insert extinction or ignition ordered by electric board and a Button ON/OFF and remote control.
2. Material in stainless and MDF.
3. Separately bio-ethanol tank and burning hearth
4. Co2 Safety infrared detector which stops the fire in the event of reaching un-authorized levels.
5. Automatic electric pump to fill the burner
6. With electronic heat detectors, it will automatice extinction when the temperature reaching the un-authorized levels.
7. AC charger or battery charger with battery loader.
8, With audio effect.
9. OEM service provided, please contact with us for more informations and models(Tech Data,Video…)
All prototype products have to go through 4 checks in the whole process:
- Raw material inspection
- In processing inspection
- Final inspection
- Outgoing inspection
op Six Reasons to Choose Art Bio Ethanol Fires:
A real fire is a stunning addition to any home or garden; whether designed as a subtle statement or a dramatic centrepiece, there is a unique attraction to dancing, flickering flames that simply cannot be matched by any imitation. Bio ethanol fires are becoming an increasingly popular alternative to the traditional wood or coal burning fire – and here are some of the top reasons why.
Q:How about sample order?
A:We accept sample order before production, it’s an necessary step before moving to successful cooperation, do not hesitate to contact with us for that.
Q:Where can I purchase one and how much does it cost?
A:Art Fireplace distributes its products in more than 100 countries and delivers to anywhere in the world. To find out where to purchase an Art Fireplace or insert, please fill in the form you can find on the contact page. An Art Fireplace agent will answer you by email within 24 hours along with a catalog and prices.
If your request is more precise and includes one or more particular models, do not hesitate to mention them on the contact form. We will then send you the specific technical description of that product, an installation diagram with the measurements to be respected as well as an estimate including delivery costs.
